custom heat sinks

Custom Copper and Aluminum Heatsinks.

 Key Specifications/ Features:

General:
• Can machine (CNC) or extrude any quantity, length or configuration required.
• Odd shapes, sizes and sytles are our speciality

Material:
• Your specified Copper (Cu) or Aluminum (Al) ally.
• Plating: Annodized or Nickel (Ni) finished/plated to your specifications.

How to order:
• Send us your drawing and 3D files.
• Speciify your desired material and finish
• Let us know how many you need Quotations are returned quickly.
• Delivery is typically 2 to 3 weeks after approval of drawing



Screw Machine parts



Custom and Standard Swiss Screw Machine Pins and Contacts

Key Specifications/ Features.

General:
• Custom and standard Swiss turned screw-machine parts. • Available as individual items or assemblies.
• Parts can be made with diameters to fit on 200 micron pitch and above.
• Have replacement parts avaiable for other manufacturers, send your parts numbers to cross-reference the item.
• Can machine (CNC) or extrude any quantity, length or configuration required.
• Odd shapes, sizes and styles are our speciality.

Material:
• Your specified Copper (Cu) or Stainless Steel Alloy.
• Plating: Your specified Gold (Au), Tin (Sn), or Tin/Lead (Sn/PB) over Nickel (Ni) metals

How to order:
• Send us your drawing, or maker's part number and/or 3D files.
• Speciify your desired material and finish.
• Let us know how many you need.
• Quotations are returned quickly.
• Delivery is typically 3 to 8 weeks after approval of drawing.

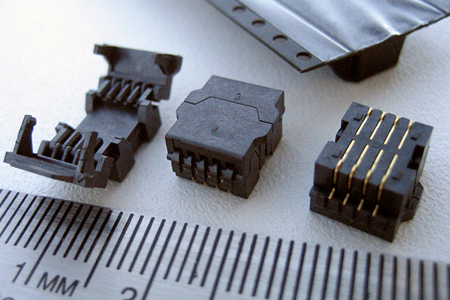

SPI Flash Socket

SPI Flash Memory

SMT-mount production SPI Flash Sockets for 8 and 16 pin memory packaged on tape-and-reel

Key Specifications/Special Features

Material:
• Insulator: Liquid Crystal Polymer (LCP) UL94V-O rate.
• Contact: Copper Alloy.
• Plating: Gold Flash (Au) over Nickel (Ni).

Performance characteristics:
• Insulation resistance: 1000 megohms min at 500 VAC
• Current rating: 1 Amp min.
• Withstanding voltage: 1000 Vrms min.
• Operating temperature: - 55C to +105 degrees C

How to order:

FOR 8 LEAD VERSION; PART NUNBER: ACA-SPI-004-K01

FOR 16 LEAD VERSION; PART NUMBER: ACA-SPI-006-K01

SOCKET USE INSTRUCTIONS



"Contact us today with your needs and let's discuss your project."
